Description

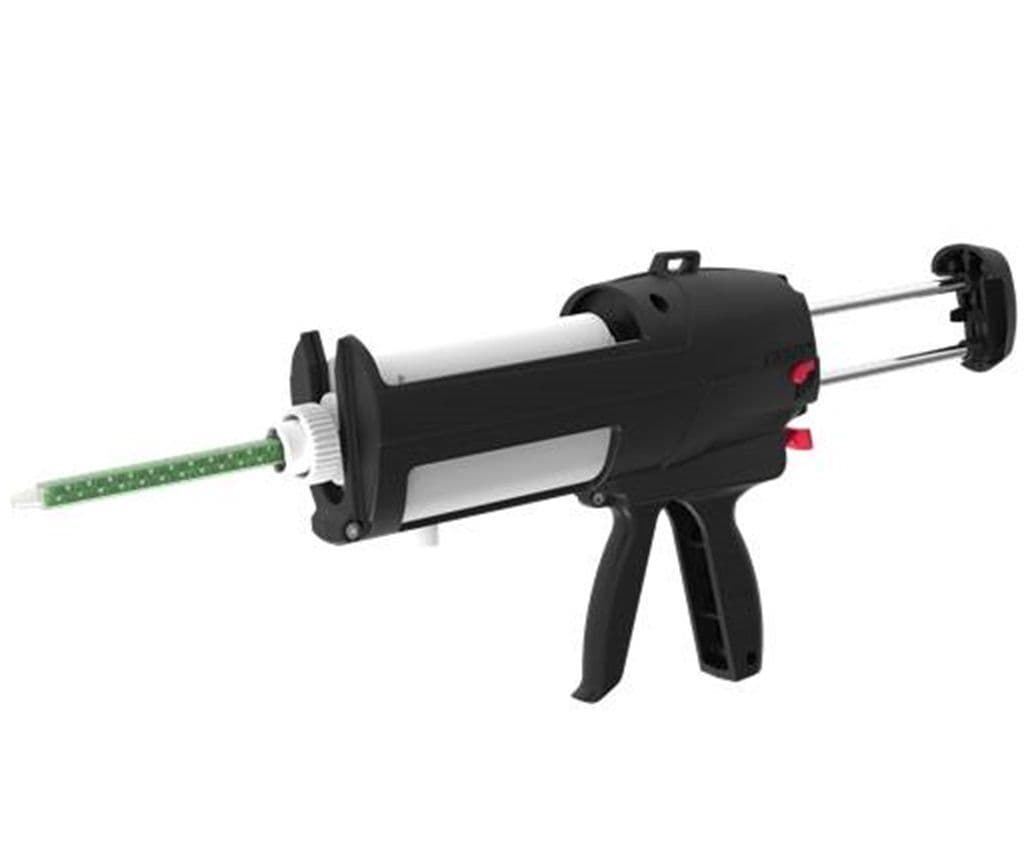

New DM2X Series Applicator Guns
For epoxies, adhesives and other materials that are supplied in dual side-by-side 10:1 / 1:1 ratio cartridges with the use of a static mixing nozzle. The lightweight and durable construction of these dual guns make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive.
This is a lightweight hand trigger operated cartridge gun supplied ready to use with cartridge ratio’s. The DM Series guns are covered by a 2 year warranty and feature a very easy trigger action and light weight.
Exceptional Dispensing
Rigid tool frame: Stabilizes and supports the cartridge even for viscous products under high force applications.
Ratio selector switch: Ensures superior metering quality for all ratios.
Effortless operation: Trigger and brake release lever are designed for jam-free operation under high force or back pressure.
Easily accessible controls: Trigger and retract button can be reached with one hand by both right- and left-handed users.
Modern & functional design: Improved handle ergonomics for more comfort and control; new up-to-date look & feel of the tool.
Dual drive rods to simultaneously push A and B plungers
Ratio selector switch to improve metering and mix quality for 2:1, 4:1, and 10:1 products and those with viscosity difference between A and B
Frame design provides support which limits off ratio
Interchangeable cartridge trays and plungers for quick and easy configuration for multiple cartridge ratios
Sulzer C, F, Blueline, J System (Quadro 400ml)
Part ID: DM2X 400-10-60-01
Materials: Reinforced Aluminium/ Steel
Colour: Black
Size: 400ml 10:1 Ratio
Weight: 1.93kg
Length: 365.91mm
Width: 95.49mm
Height: 240.82mm
Boxed Dimensions: 586mm x 385mm x 111mm
Maximum Thrust: 5.2kN ( 520kg), 3.7mm stroke
Warranty: 2 Years
